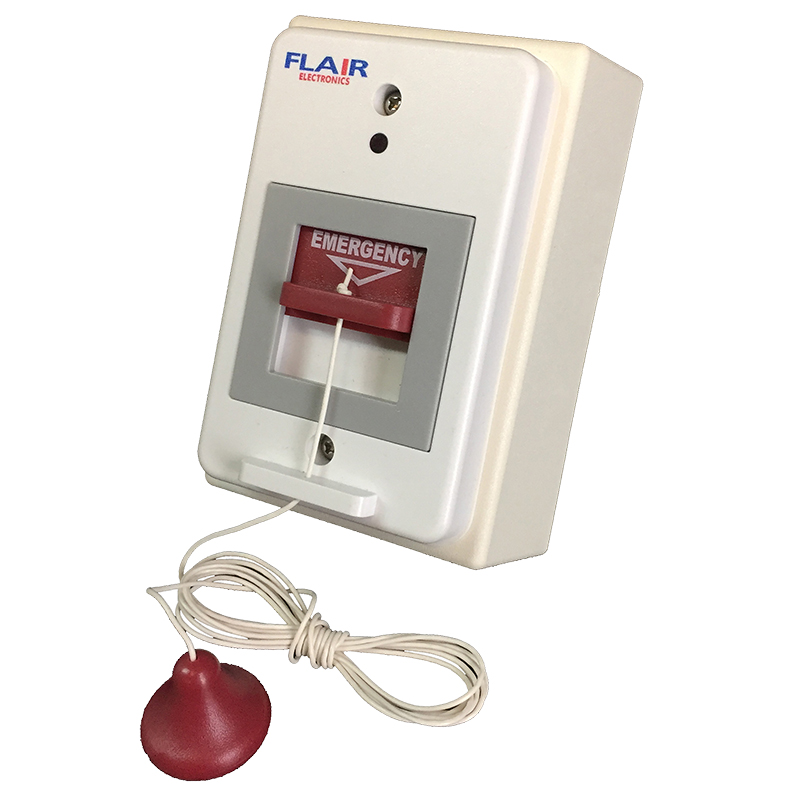

EPC500WB: Wireless Surface Mount Pull Cord Station

The Flair Wireless Surface Mount Mount Pull Cord Station with built-in Inovonics transmitter is an easy-to-install emergency notification device for use in bedroom, shower and restroom locations at assisted living and senior living facilities. The Pull Cord Station does not require any electrical wiring or loss in occupancy while installation is taking place. Long battery life results in many years of maintenance free operation.

The reinforced pull cord with large red knob reaches to the ground so residents can get to it easily in an emergency. LED and audible alerts combine to provide the resident confidence that their call was sent out for help. Low battery, signal loss problems and regular check-ins are automatically transmitted to ensure the system is always working.

The Pull Cord Station includes an Inovonics wireless transmitter and will work with most Inovonics and other brand compatible receivers.

Key Features:

  • Waterproof Design
  • Wireless Operation, Powered by Inovonics
  • Easy Single-Pull Activation, Latching
  • Surface Mount Mount with Back Box
  • LED flashes and audible sounds whenever cord is pulled
  • LED and audible continue until red pull is Reset
  • Pull Cord Station can direct wire to hallway Dome Light
  • Specifications

    Part NumberEPC500WB
    ColorWhite Plastic Single Gang Plate with Back Box
    MountingSurface Mount
    OtherRed LED and Sounder upon Activation
    PowerBattery, CR123A
    OutputInovonics Wireless Transmitters, 902-928 MHz
    Size3.5″ Wide x 5″ Tall x 1 3/4″ Deep
    UL RatingNone



    EPC500WB Wireless Pull Cord Station 128 KB 7478 downloads
