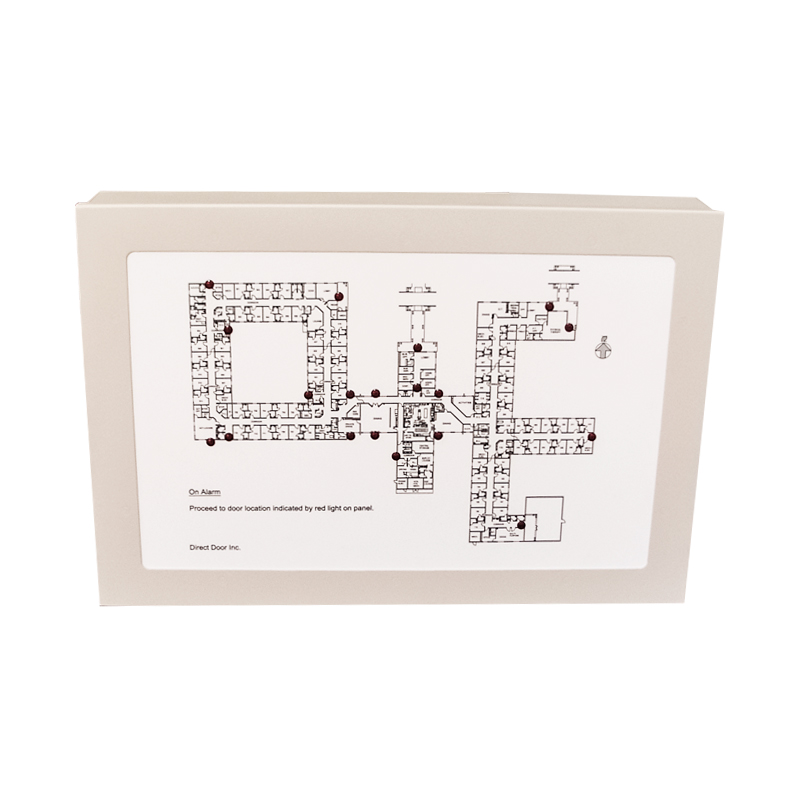

550A-1117: Wired Surface Mount Nurse Call Graphic Annunciator

The Super Nurse Call Wired Surface Mount Graphic Annunciator, Model 550A-1117, is an easy-to-install and easy-to-operate wired emergency call system. Simple operation and information at a glance mean faster response time and higher safety ratings.

A variety of Pull Cords, Panic Buttons, Motion Sensors and Magnetic Contacts will wire directly to the Model 503A Annunciator. The graphic is white vinyl with a Lexan laminate for protection and can be customized for any facility. Bright Red LEDs latch in when a device is activated. A button next to each room on the Annunciator is used for Silence and Reset (once the device is cleared). All Super Nurse Call Annunciators include an internal common alarm relay and UL listed power transformer.

Key Features:

  • Simple, Highly Visual Call LEDs
  • Wired Supervised Devices
  • Low Level Sounder for Call Notification
  • Removable Clear Cover and Room Identification Labels
  • One Touch Zone Acknowledge and Reset
  • Single Common Alarm Relay Output for activating external siren or other devices
  • Specifications

    Part Number

    550A-1117

    Color

    Beige with White Graphic

    Custom Options

    Call Super Nurse Call for help to design a custom annunciator

    Details

    White Vinyl with Black Details, Lexan Coated

    Input

    #22 AWG 18″ Input Wire Harnesses included. Output Harnesses extra.

    Mounting

    Surface, Four Screws

    Power

    12VDC (Power Supply and Transformer Included)

    Size

    13″ Wide x 19″ Tall x 3 1/2″ Deep

    Ul Rating

    None

    Warranty

    1 Year Limited Warranty

    Weight

    5 lbs

    Zones

    24 LEDs

    Downloads

    Icon

    550A Wired Nurse Call Annunciator 385 KB 1195 downloads

    ...

    Icon

    Super Nurse Call Products 129.63 KB 58 downloads

    ...
