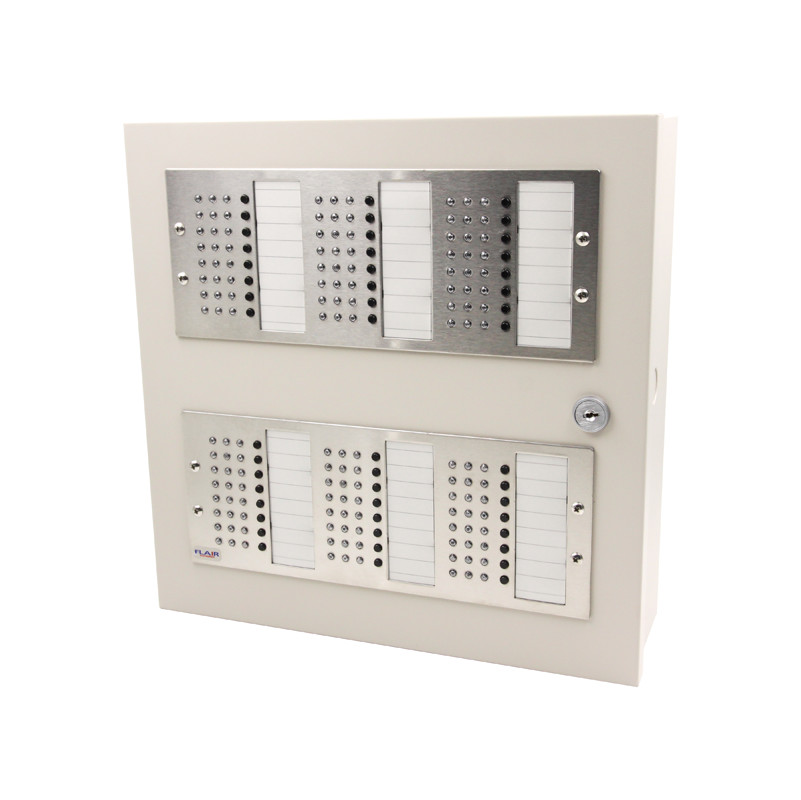

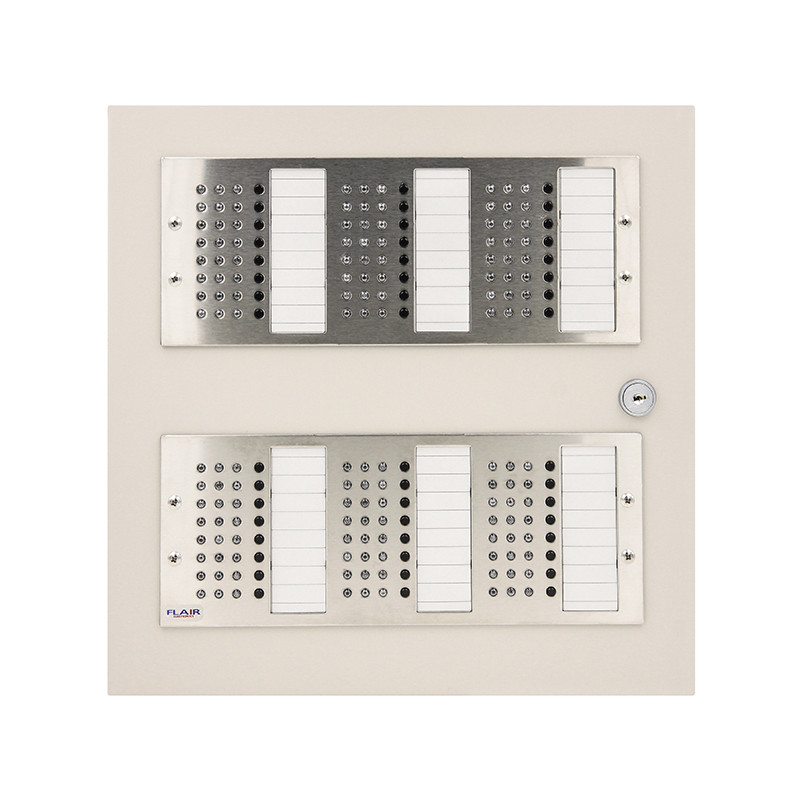

503A: Wired Surface Mount Nurse Call Annunciator

The Super Nurse Call Wired Annunciator, Model 503A, is an easy-to-install and easy-to-operate wired emergency call system. Simple operation and information at a glance mean faster response time and higher safety ratings.

A variety of Pull Cords, Panic Buttons, Motion Sensors and Magnetic Contacts will wire directly to the Model 503A Annunciator. The removable zone or room paper template can be customized for any facility. LEDs latch in when a device is activated. A button next to each room on the Annunciator is used for Silence and Reset (once the device is cleared). All Flair Annunciators include an internal common alarm relay and UL listed power transformer.

Key Features:

  • Simple, Highly Visual Call LEDs
  • Wired Supervised Devices
  • Low Level Sounder for Call Notification
  • Removable Clear Cover and Room Identification Labels
  • One Touch Zone Acknowledge and Reset
  • Single Common Alarm Relay Output for activating external siren or other devices
  • Specifications

    Part Number

    503A

    Color

    Beige with Stainless Steel Face Plate

    Custom Options

    Call Super Nurse Call for help to design a custom annunciator

    Details

    Removable Room identification Labels with Clear Plastic Snap-In Covers

    Input

    #22 AWG 18″ Input Wire Harnesses included. Output Harnesses extra.

    Mounting

    Surface, Four Screws

    Power

    12VDC (Power Supply and Transformer Included)

    Size

    14″ Wide x 14″ Tall x 5″ Deep

    Ul Rating

    None

    Warranty

    1 Year Limited Warranty

    Weight

    10 lbs

    Zones

    Unlimited

    Downloads

    Icon

    503A Wired Nurse Call Annunciator 715 KB 447 downloads

    ...

    Icon

    Super Nurse Call Products 129.63 KB 41 downloads

    ...
